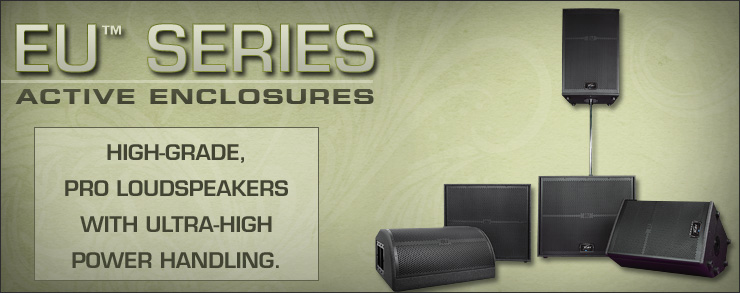

The EU™ 112D and EU™ 115D powered enclosures showcase the new Peavey Black Widow® BWX-DVC Neo loudspeaker, engineered with dual voice coil, push-pull technology and a neodymium magnet. A Woofer Servo circuit monitors back-EMF and controls cone motion, ensuring the cone's movement mirrors the driving signal from the power amp, and resulting in very low distortion, high power handling and rocksolid low-frequency attack.

The EU 112D and EU 115D feature Peavey's 2" RX™22 titanium compression driver and patented Quadratic Throat Waveguide™ horn in an asymmetrical design providing 100° H x 50° V (+15, -35) coverage. The driver is positioned in line with the horn geometry to ensure clear sound reproduction. Utilizing Peavey's revolutionary IPR™ power amplifier technology, the EU 112D and EU 115D produce 1,200 total watts of efficient power designed with a lightweight switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency vailable.

The EU input section features two input channels and a line output, with a mix of I/O options such as combination XLR-ΒΌ" jacks, RCA and install-ready Phoenix connections. Input channels 1 and 2 also have mic/line source switches and gain controls. The Auto Off function automatically shuts off the power when it no longer detects a signal, while the Line Out allows the user to chain multiple units or send the input signal to another source.

The DynaQ™ section offers advanced tone controls such as Bass Enhancer, which is an overall loudness boost; a Music/Speech switch that provides optimized EQ settings for each audio type; and Contour, specially configured for program music. A module bay allows for future expansion including Wireless I/O, Delay/Time Adjustment, Mixer Expander, Ethernet I/O and more.

The EU 118D features a 1,000-watt Peavey IPR power section and a Low Rider® 18 woofer in a highly rugged enclosure. The EU 118D also features a fourth order Linkwitz-Riley crossover that has eight selectable low frequency crossover points, a crossover in/out switch, low frequency enhancement, and a high-pass output to send the signal out to an EU powered high/mid enclosure.

The EU 112D, EU 115D and EU 118D are constructed of lightweight 13-layer plywood with a durable HammerHead™ polyurethane finish. The EU 112D and EU 115D have three built-in flying points and a tiltback design to facilitate use as a personal monitor, while all three models are equipped with pole mounts.
