Peavey

PVX™ 12 Passive Loudspeaker

The Peavey PVX™ 12 is a passive two-way loudspeaker built for live music, PA sound, and permanent installations. Its heavy-duty 12-inch woofer and RX™ 14 titanium-diaphragm compression driver deliver a frequency response of 60 Hz to 20 kHz, with 400 W program and 800 W peak power handling.

Peavey’s Quadratic Throat Waveguide provides 100° horizontal × 50° vertical coverage, directing the main sound energy downward 10° toward the audience rather than over their heads. This asymmetrical design helps reduce ceiling reflections for greater clarity and gain before feedback. A rugged injection-molded enclosure, three carrying handles, and a molded-in pole mount make the PVX 12 practical for portable setups, while multiple mounting inserts support permanent installations. An angled cabinet section also allows it to double as a floor monitor.

SKU: 03620380
  • Heavy-duty 12-inch woofer with a 2 3/8-inch voice coil and 50 oz. magnet.
  • RX 14 compression driver with a 1.4-inch titanium diaphragm.
  • 200 W continuous, 400 W program, and 800 W peak power handling.
  • Quadratic Throat Waveguide with 100° horizontal × 50° vertical coverage.
  • Asymmetrical horn directs the main sound energy downward 10° toward the audience.
  • Passive crossover network with equalization and high-frequency driver protection.
  • Durable, textured black ABS enclosure with a powder-coated perforated steel grille.
  • Angled right-side cabinet section for floor-monitor use.
  • Three carrying handles and a molded-in speaker-stand mounting cup.
  • Top, bottom, and right-side mounting inserts, with support for the Peavey VersaMount 70+ bracket.
  • Four-pin twist-lock input connector in parallel with a 1/4-inch phone jack.

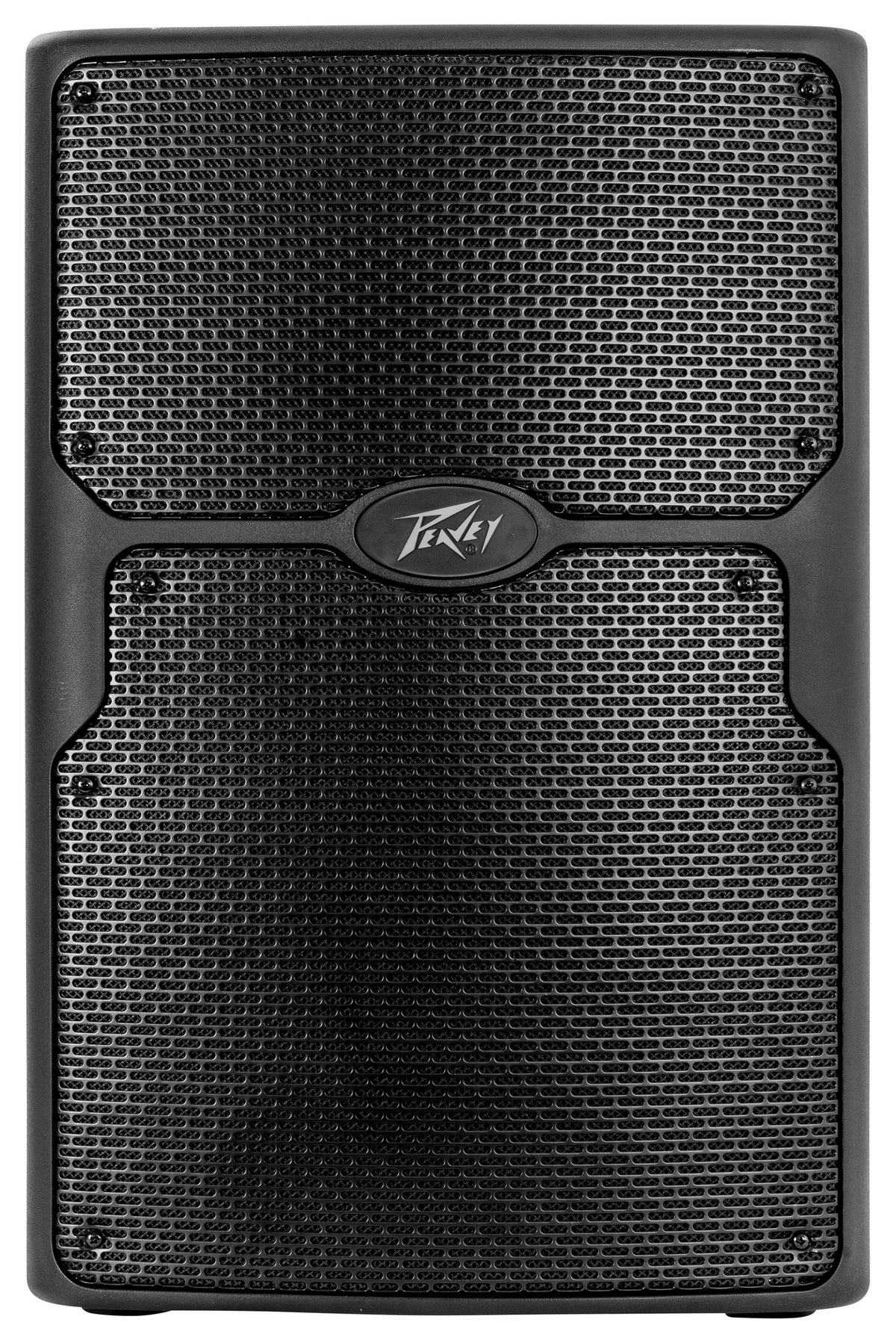

PVX™ 12 Passive Loudspeaker image 0

PVX™ 12 Passive Loudspeaker

$399.99

$399.99

FAQ

System Type Passive two-way sound reinforcement enclosure

Frequency Range 48 Hz to 21 kHz, measured at 1 meter on-axis using swept sine in a half-space environment

Frequency Response 60 Hz to 20 kHz (±3 dB), measured at 1 meter on-axis using swept sine in an anechoic environment

Usable Low-Frequency Limit 51 Hz (-10 dB point, anechoic)

Continuous Power Handling 200 W

Program Power Handling 400 W

Peak Power Handling 800 W

Sensitivity 96 dB SPL at 1 watt, 1 meter in an anechoic environment (2.83 V input)

Maximum Continuous SPL 119 dB SPL at 1 meter

Maximum Peak SPL 125 dB SPL at 1 meter

Nominal Coverage 100° horizontal × 50° vertical, measured at the -6 dB points of the polar response

Vertical Coverage Orientation Main polar lobe angled downward 10°, providing +15° to -35° coverage relative to straight ahead

Low-Frequency Driver Heavy-duty 12-inch woofer with a 2 3/8-inch voice coil and 50 oz. magnet

High-Frequency Driver RX 14 dynamic compression driver with a 1.4-inch titanium diaphragm

Waveguide Peavey Quadratic Throat constant-directivity waveguide

Box Tuning Frequency 62 Hz

Crossover Frequency 2.8 kHz, internal passive crossover

Driver Protection Crossover network with equalization and high-frequency driver protection

Nominal Impedance 8 ohms

Minimum Impedance 6.7 ohms

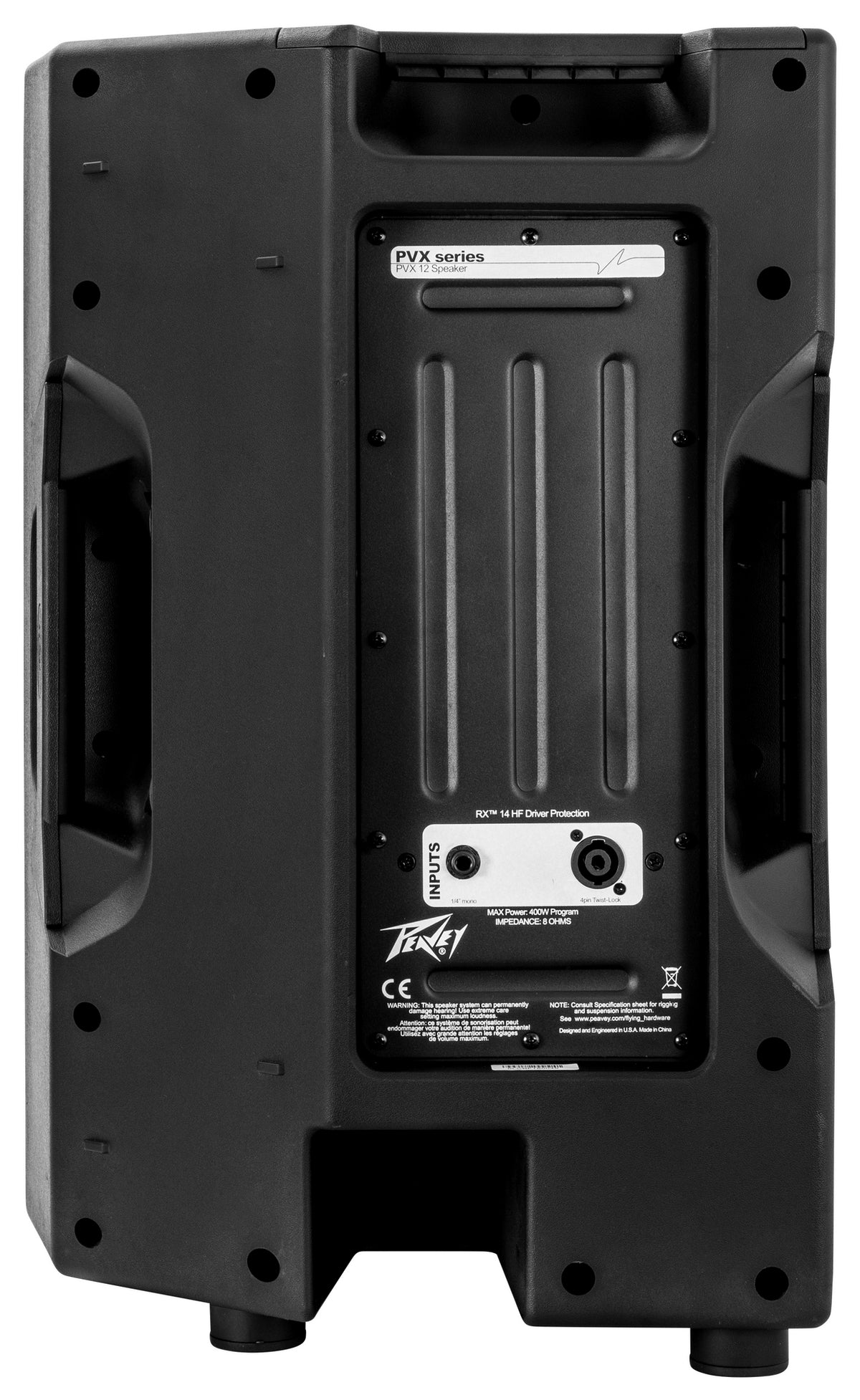

Input Connections One four-pin twist-lock connector in parallel with one 1/4-inch phone jack

Enclosure Material and Finish Black injection-molded ABS plastic with a textured surface

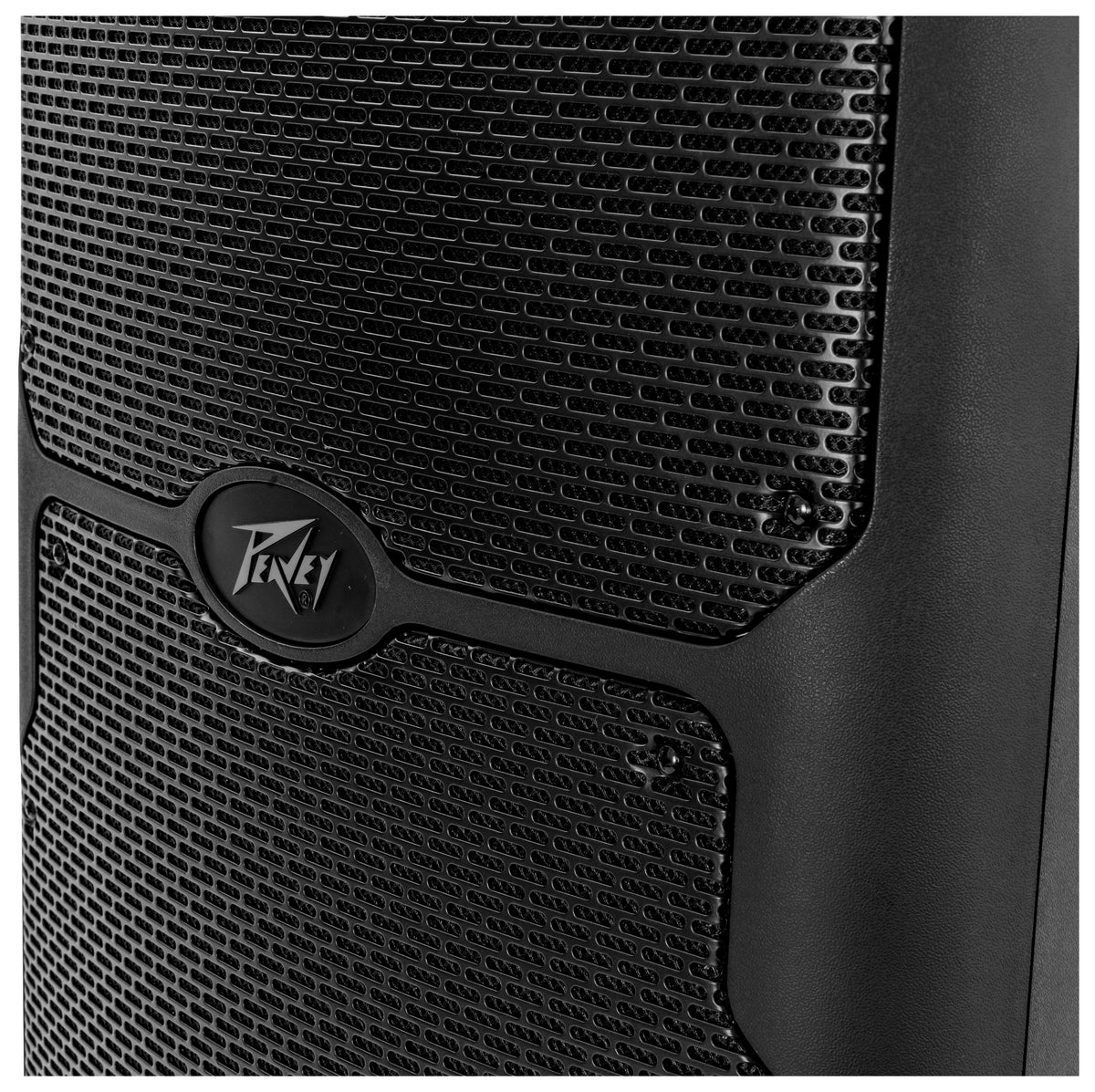

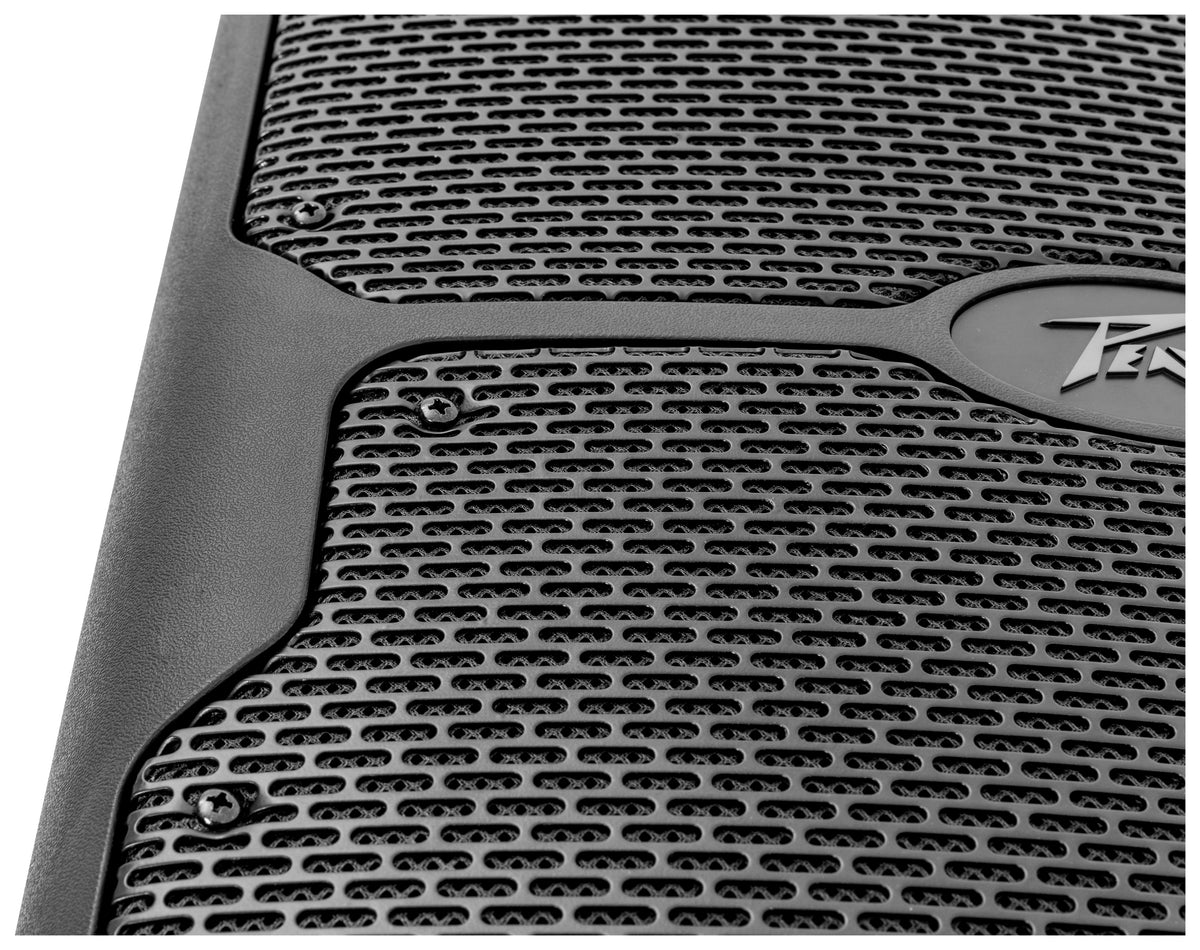

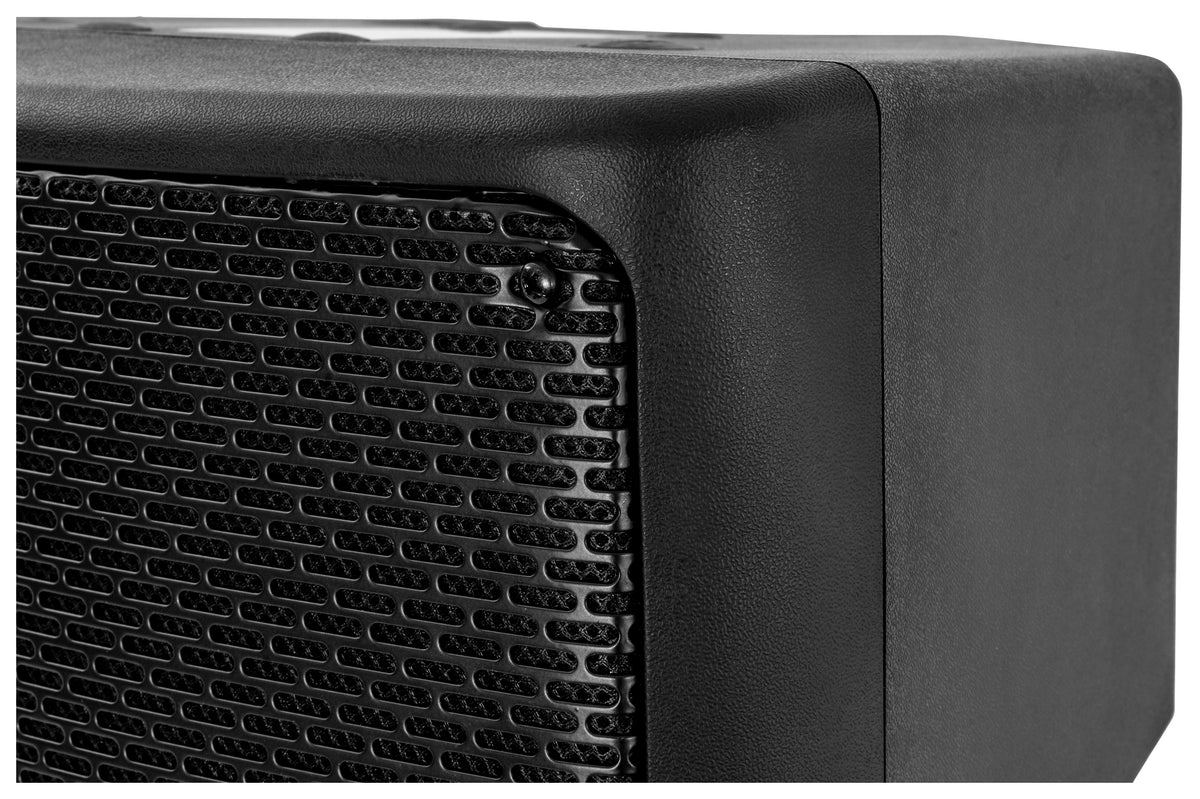

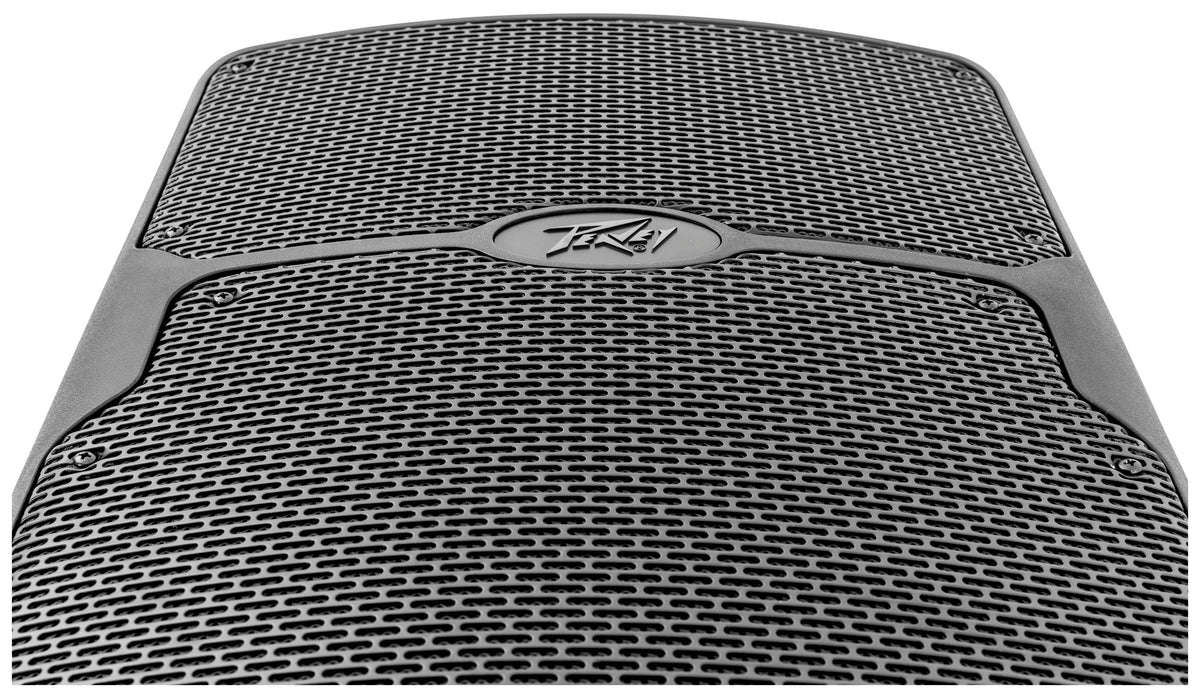

Grille Black powder-coated perforated steel

Enclosure Design Trapezoidal cabinet with an additional 45° angled section on the right side for floor-monitor use

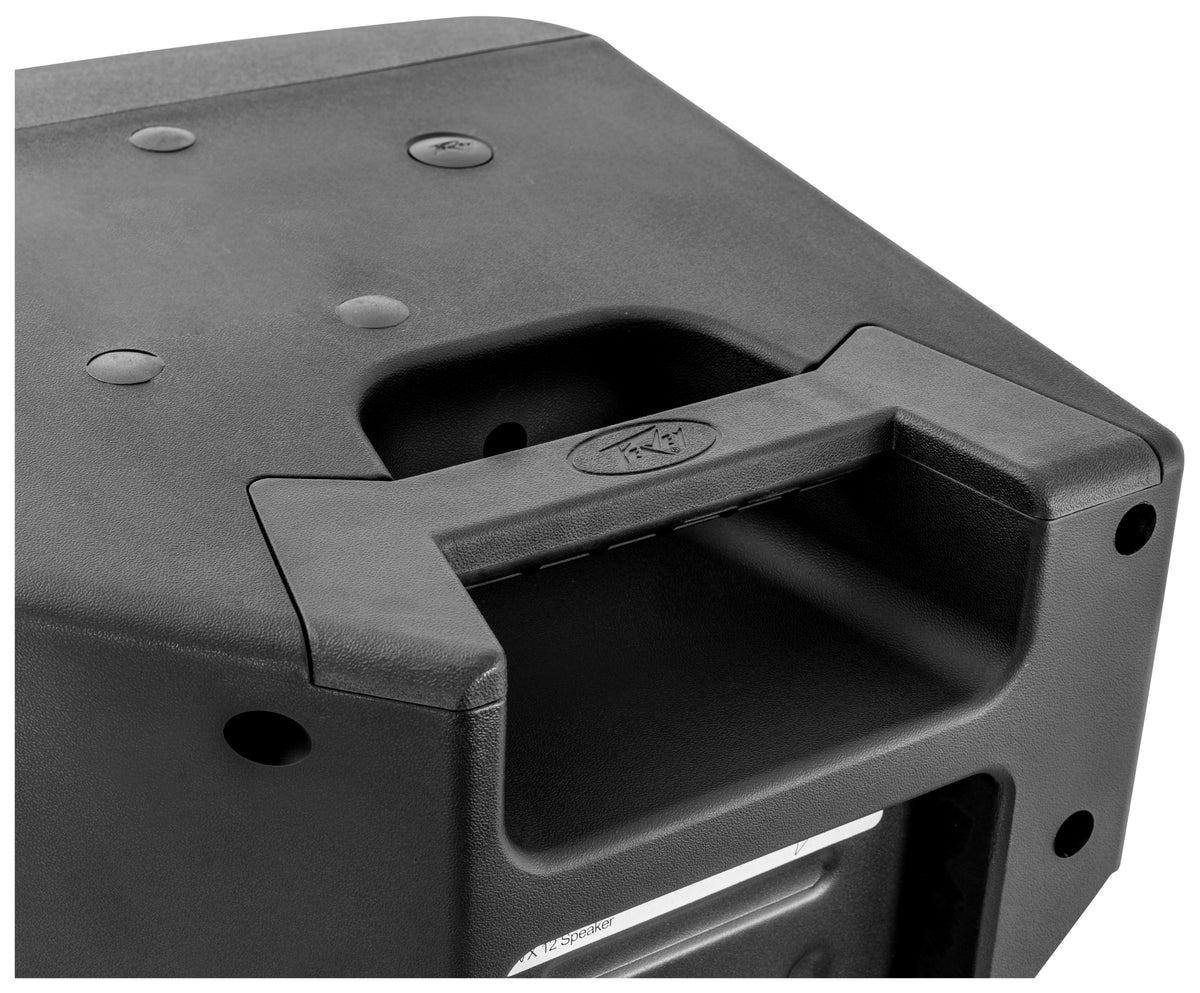

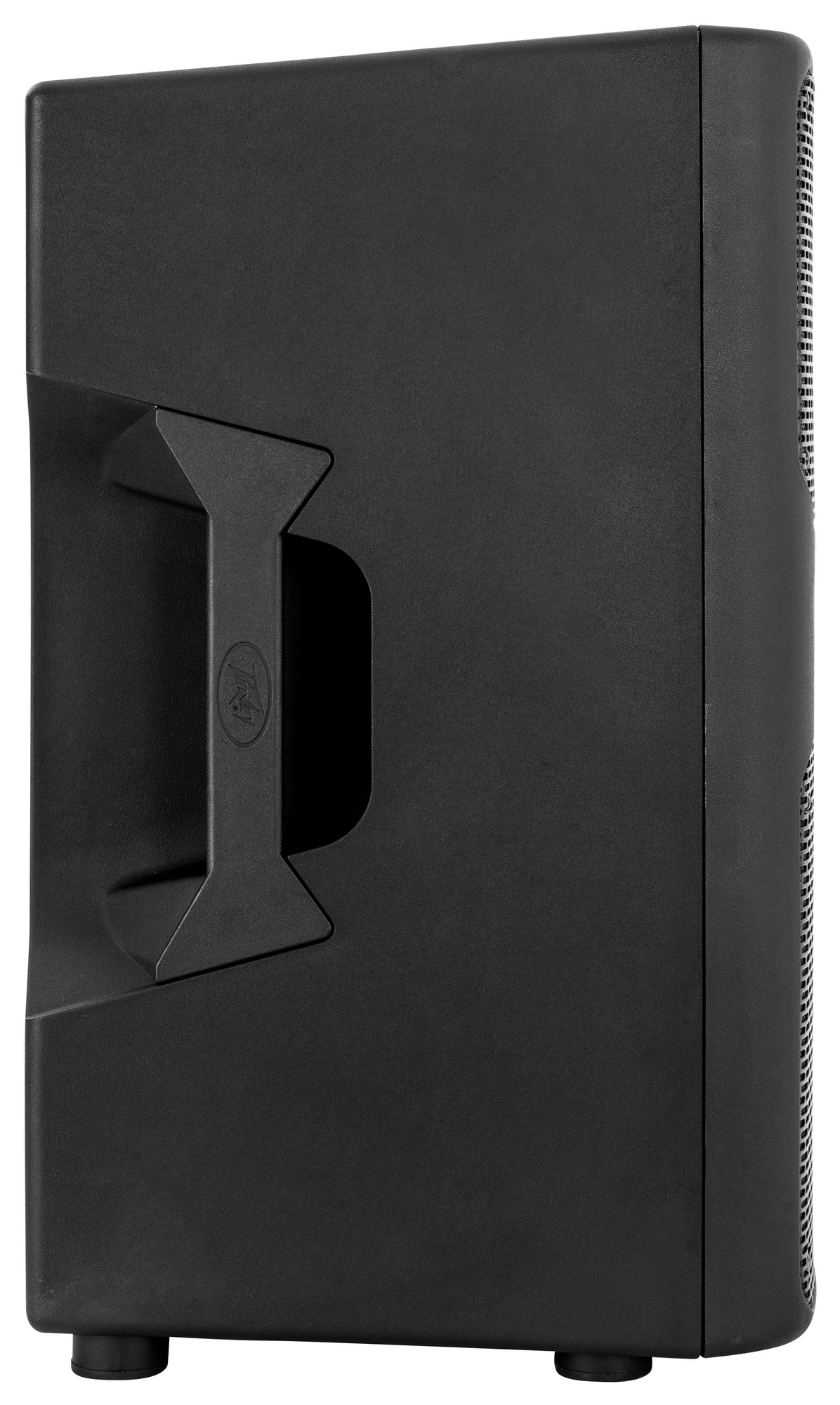

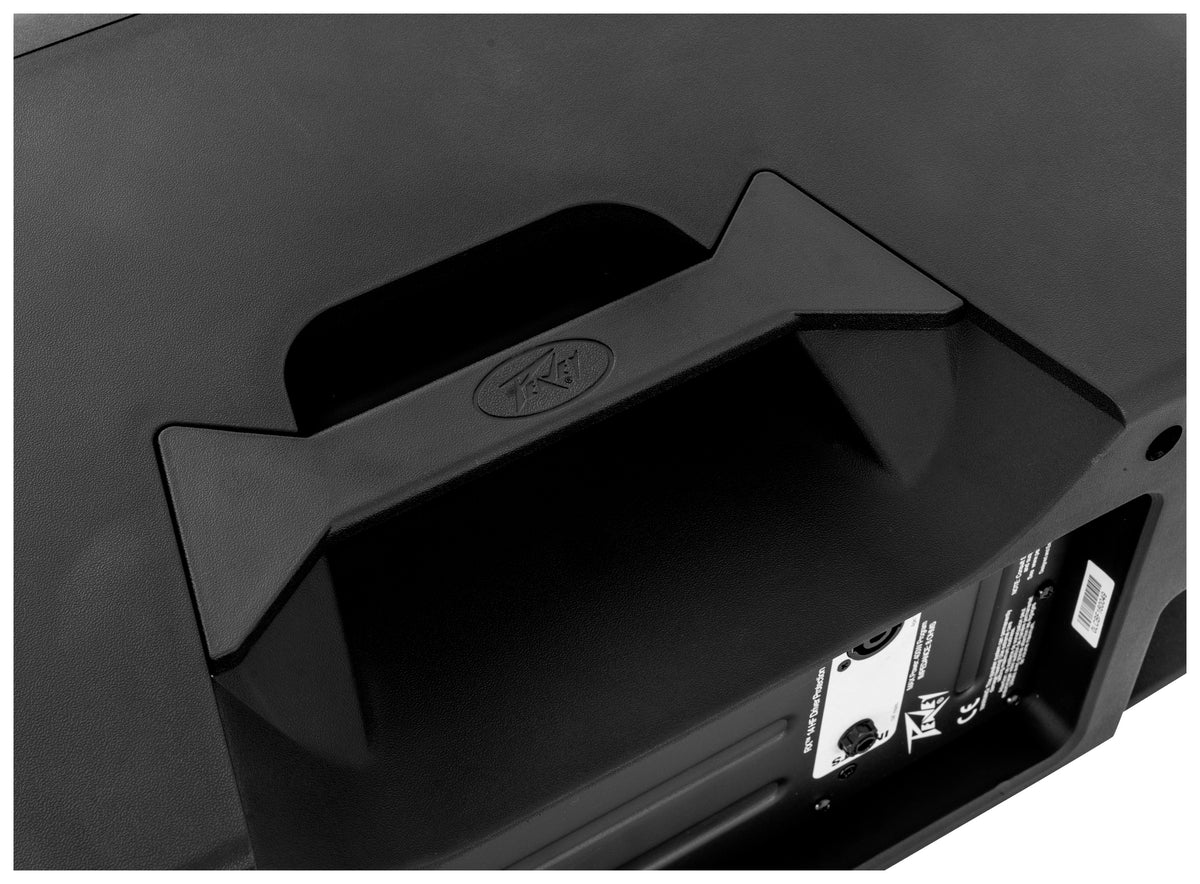

Handles Three handles, one on the top rear and one on each side

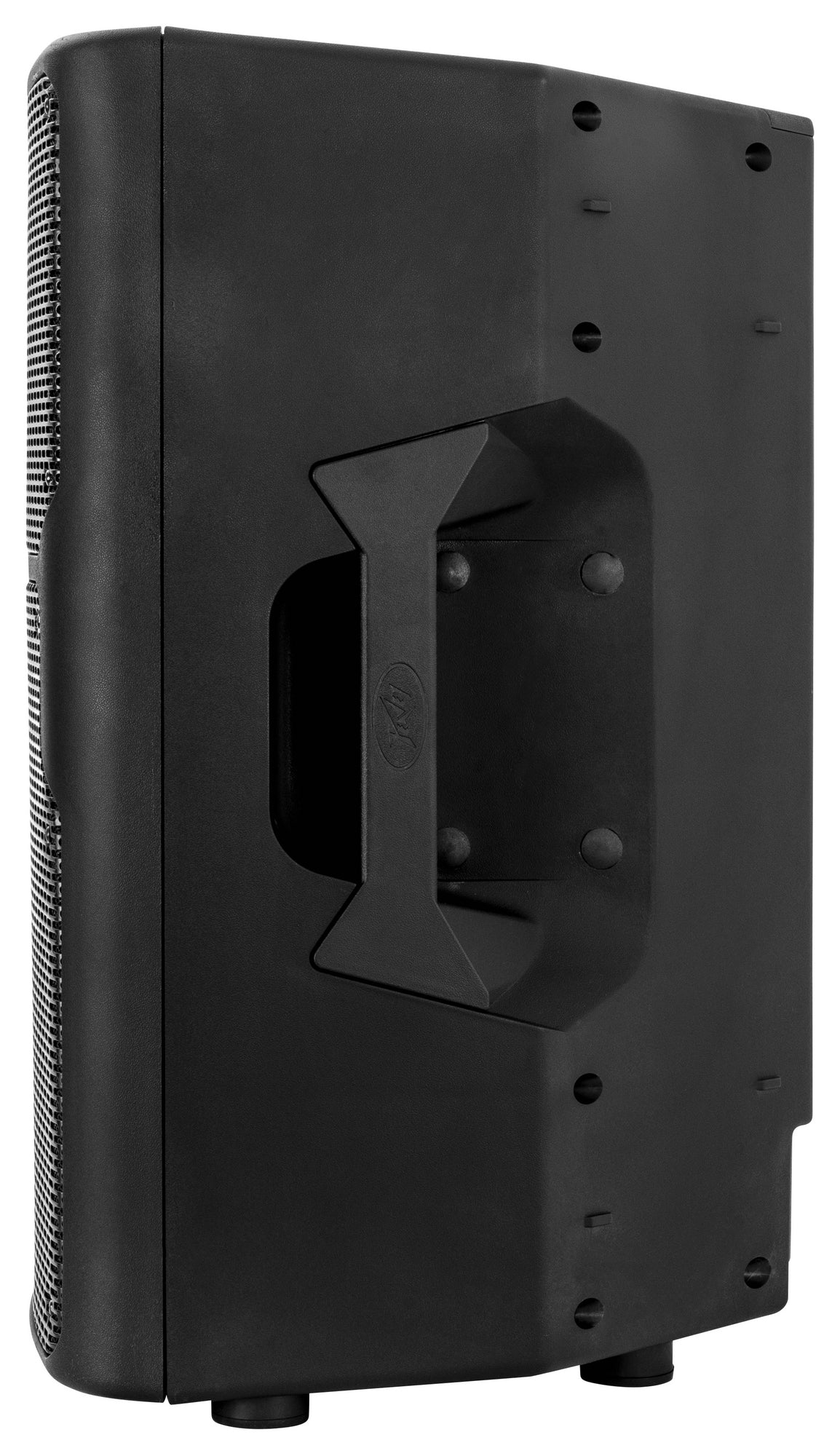

Mounting Inserts 16 total inserts: two M10 inserts on the top, two M10 inserts on the bottom, and four M8 inserts each on the top, right-side handle recess, and bottom

Mounting Bracket Compatibility Peavey VersaMount 70+

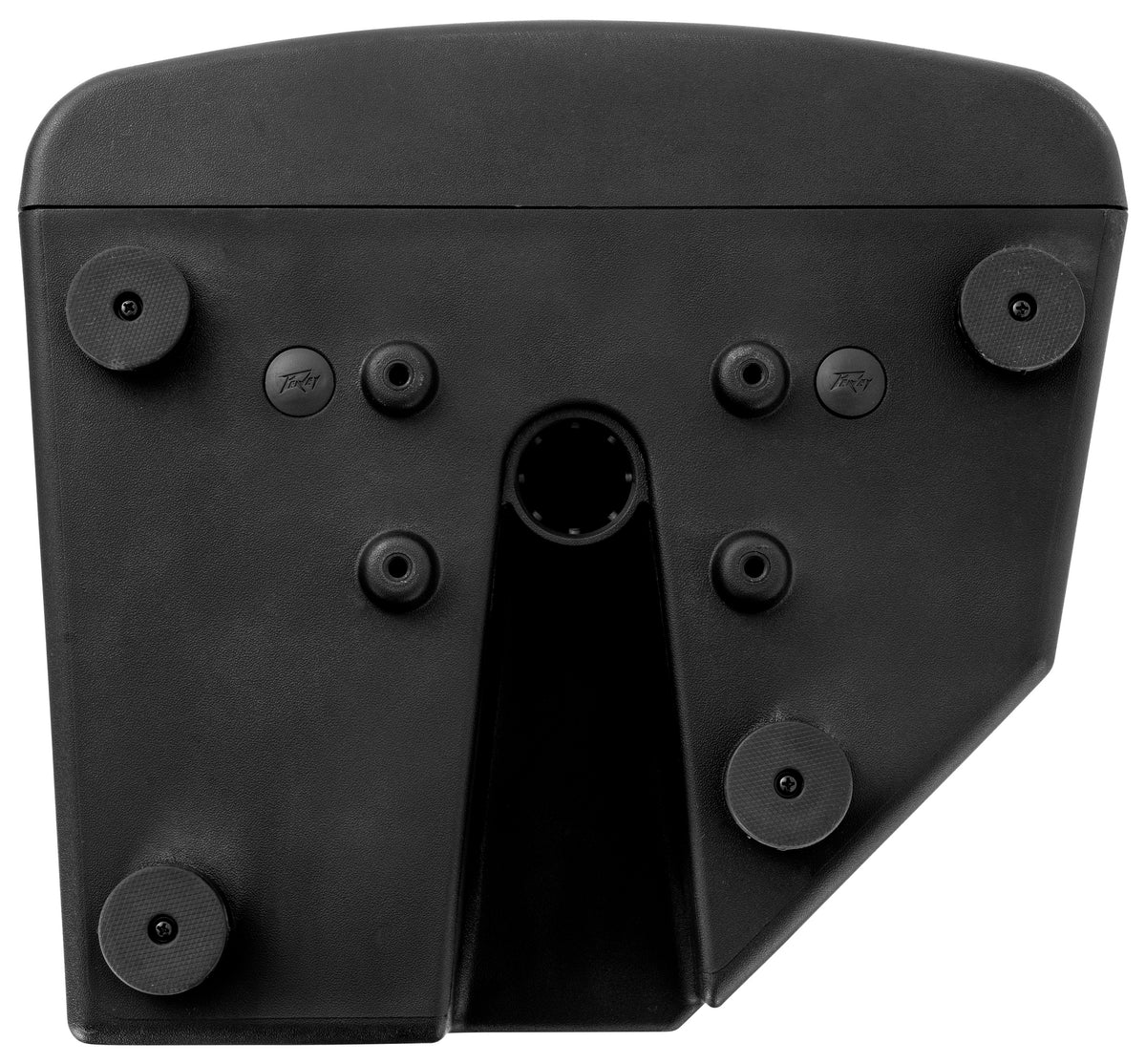

Stand Mount Molded-in mounting cup for a standard 1 3/8-inch (36 mm) diameter stand pole

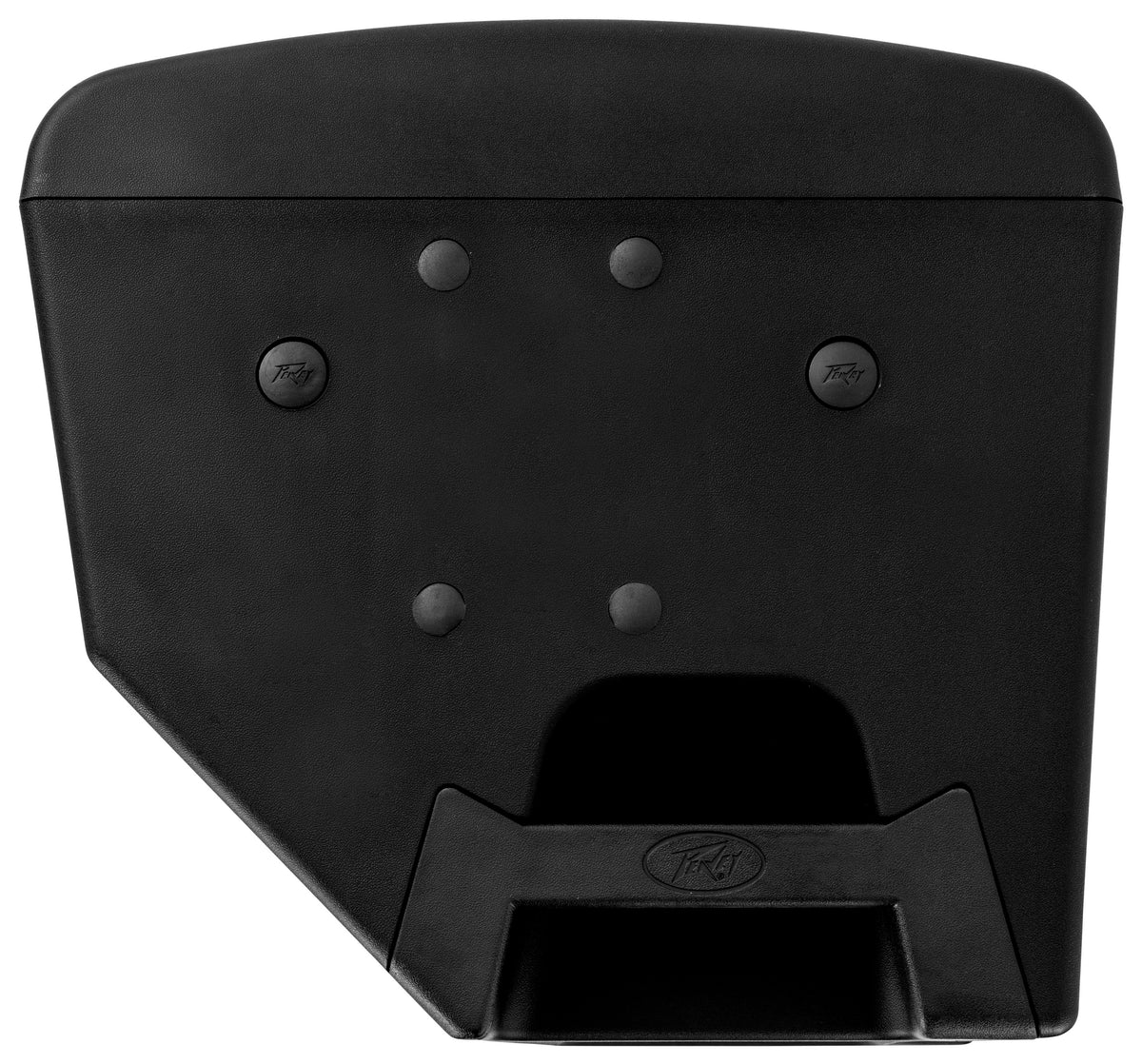

Feet Four rubber feet for floor or stage use

Front Dimensions (H × W × D) 24.50 × 16.10 × 15.00 inches (622 × 409 × 381 mm)

Rear Dimensions (H × W × D) 22.75 × 8.75 × 15.00 inches (578 × 222 × 381 mm)

Net Weight 37 lb (16.8 kg)

PVX 12 Specsheet
