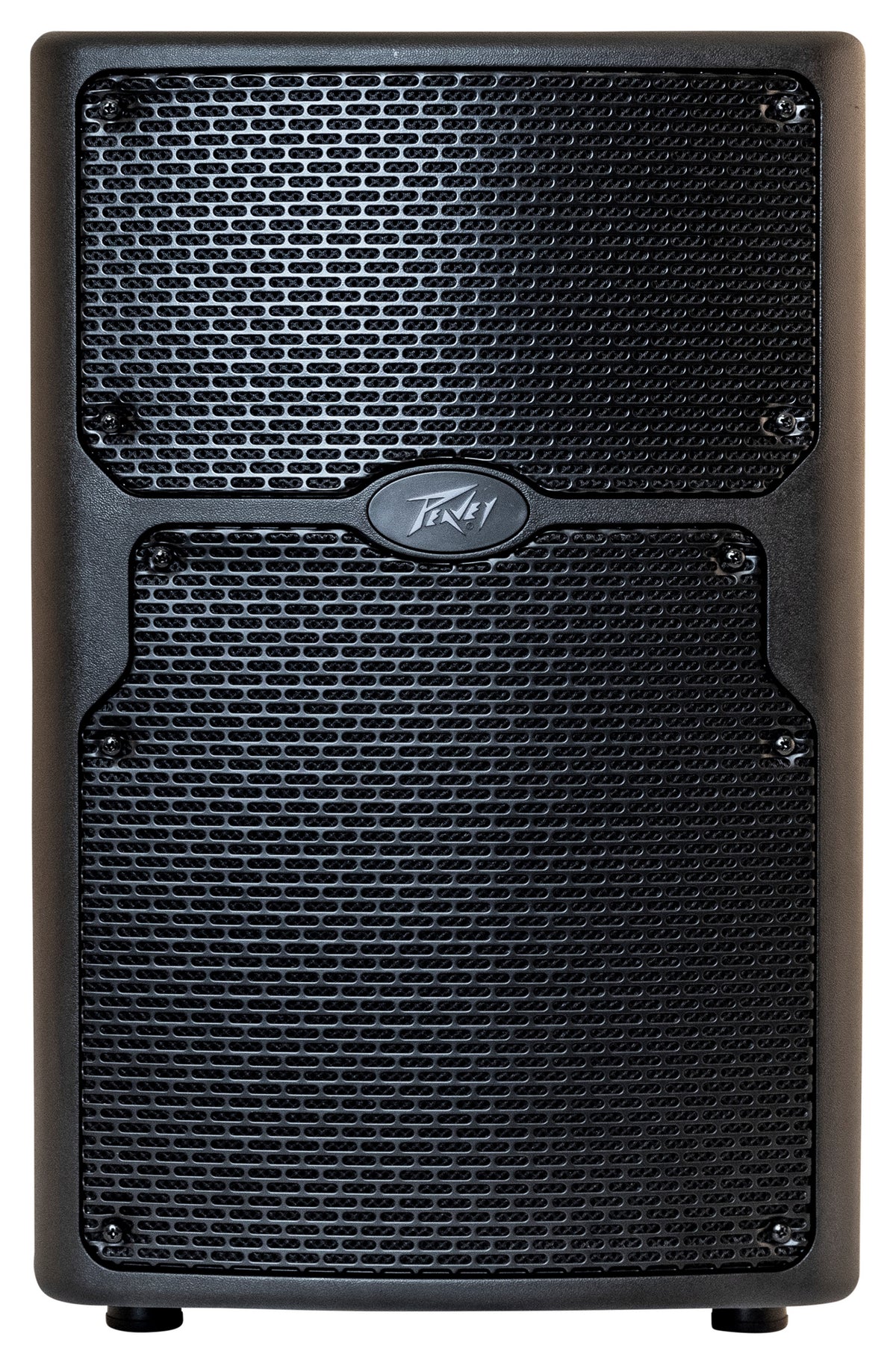

The PVXp 10 Bluetooth features a reliable bi-amped power section that provides a total of 520 Watts of peak dynamic power with DSP based compression and limiting. This enclosure features a 10" heavy-duty woofer with a 2 3/8 inch voice coil and 50 ounce magnet, and the RX10 compression driver with a 1 inch titanium diaphragm on a 100 degree horizontal x 60 degree vertical pattern asymmetrical horn. The PVXp 10 Bluetooth provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4 inch input as well as a balanced XLR input. A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. There is a balanced output, a Male XLR, that can feed the mixed signals from the three channels out to another component. A front baffle LED indicator that can be set to light when power is on, and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters are accessed via a one-knob selector.
SKU: 03620450
Two-way bi-amped sound reinforcement enclosure
RX™10 compression driver, with 1 inch titanium diaphragm
Reliable fan-cooled power amps with DSP protection
Total of 520W peak dynamic power
DSP control for precise crossover, EQ and limiting functions
PVXp loudspeakers deliver a robust sonic experience with exceptional fullness, thanks to a heavy-duty woofer with 2 3/8-inch voice coil and 50-ounce magnet.
Advanced Coverage and Clarity
The asymmetrical horn and Quadratic Throat Waveguide in PVXp loudspeakers create expansive coverage with cleaner, clearer sound for your audience.
Optimize Your Performance
Optimize your sound for any setting with advanced DSP and application-specific presets.
EQ
for Each Channel
EQ on the mic/line, line, and Bluetooth input channels allows you to fine-tune each channel individually.
Display
and Mixer
The PVXp’s display screen allows you to navigate DSP settings and mix all three input channels.

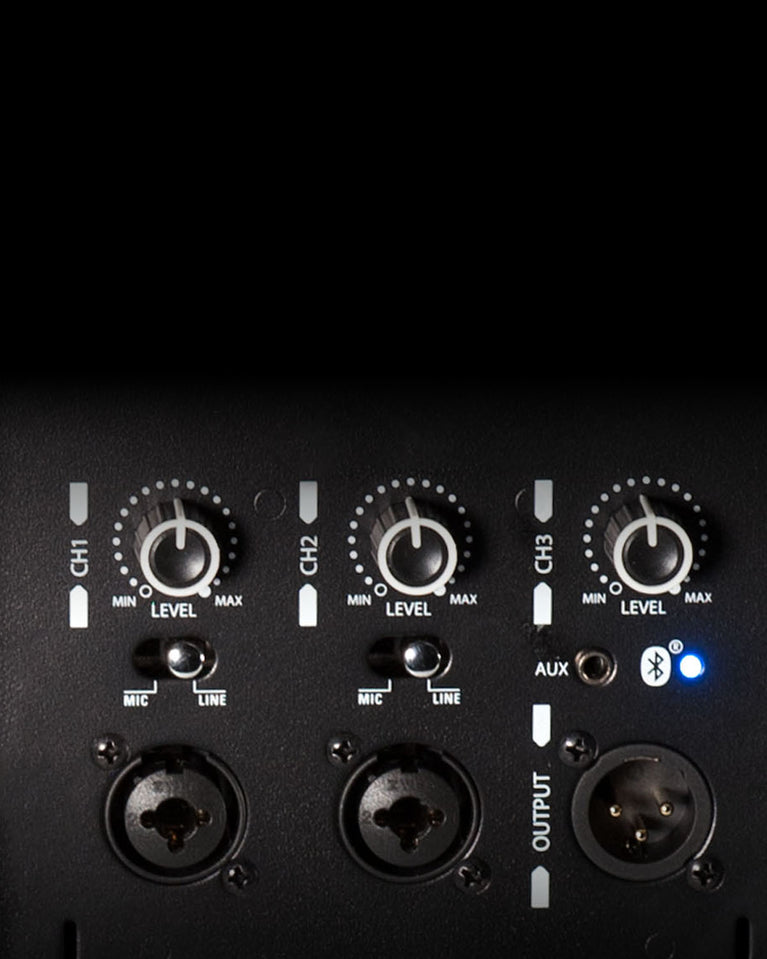

Comprehensive Connectivity
An XLR/TRS combo jack is ready for line-level input from a mixer, while the Mic/Line switch lets you connect a handheld vocal mic straight to the loudspeaker if needed.
Maximum
Versatility
PVXp series speakers can be used as main speakers or stage monitors, with speaker pole mounts, fly points, and an angled side for floor positioning.
Stage-Ready Ruggedness
Rugged injection-molded cabinets and powder-coated steel grilles give PVXp powered loudspeakers the road-ready durability you need to run the show with confidence.
3 Channels, 1 Speaker
For single-speaker applications, the PVXp loudspeakers offer three input channels via XLR/TRS combo, XLR, and Bluetooth.
Onboard Soft-Limiting
PVXp loudspeakers feature switchable DDT soft-limiting to prevent distortion caused by unexpected signal spikes.
FAQ
Frequency Range, 1 meter on-axis, swept-sine in ½ Space environment 52 Hz to 20 kHz Frequency Response, 1 meter on-axis, swept-sine in anechoic environment 65 Hz to 20 kHz (±3 dB) Usable Low Frequency limit (-10 dB point anechoic) 54 Hz Nominal sensitivity (1W @1M, swept sine input in anechoic environment) 96 dB (average) Maximum Sound Pressure Level (1 meter) 123 dB SPL peak with music Radiation Angle measured at -6 dB point of polar response Nominal: 100 degrees horizontal X 60 degrees vertical
(Axis of the vertical main polar lobe is angled down 10 degrees, resulting in the angular pattern with respect to straight ahead being +20, -40 degrees) Transducer Complement Heavy-duty 10” woofer with 2 3/8” voice coil & 50 oz. magnet
RX™10 1.0” titanium diaphragm dynamic compression driver Electroacoustic crossover frequency 2,000 Hz Crossover type Advanced DSP based filter also providing driver EQ, level matching, bass boost, limiting, compression and subsonic filtering. Crossover Slopes Nominally 24 dB/octave (4th order) low pass, 24dB/octave (fourth order) high pass, both with driver EQ incorporated. Input Connections (Each, Channels 1 and 2) One combo female XLR and 1/4" phone jack providing balanced line-level operation. Mic/Line switch provides extra gain for microphone use. Input Connections (Channel 3) AUX is a 1/8" phone type jack. Channel 3 is nominally the Bluetooth® signal source channel. Output Connection One male XLR jack. This jack is intended for the use of linking multiple PVX™p 10‘s in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal. Enclosure Materials & Finish Black injection-molded plastic with textured surface, black powder-coated perforated grilles. Mounting provisions Unit has two sets of two M8 inserts, one pair on the top, and one pair on the bottom.
Additional mounting points are a set of four M8 inserts on the top, and a set of four on the bottom, which use the Peavey VersaMount™ 70 mounting bracket.
Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup is on the bottom.
Shipping Weight 15.5 kg Shipping Dimensions 22.441 × 15.945 × 14.37 in
