Peavey

PVs 12 Vented Powered Bass Subwoofer

$699.99

Bring added depth and punch to your sound system with the Peavey® PVs 12 Sub. This compact powered subwoofer pairs a heavy-duty 12-inch woofer with 1,000 watts of peak available power to extend the bass performance of smaller full-range speakers. It’s a versatile choice for live sound reinforcement, DJ sets, karaoke and music playback.

Built-in DSP handles crossover processing, EQ, compression and limiting, while an adjustable 90–180 Hz crossover helps you match the subwoofer to your main speakers. Two high-pass XLR outputs send filtered audio to your powered speakers, easing their deep-bass workload, and a full-range XLR thru output makes it easy to link another subwoofer or line-level device. Switchable Bass Enhance adds extra punch when your music calls for it.

A protective steel grille, sturdy steel handles and rubber feet for upright or side placement make the PVs 12 Sub ready for flexible setups. Top and side threaded pole mounts, plus an included speaker pole, support a compatible satellite speaker within the manual’s mounting limits.

SKU: 03619280
  • Heavy-duty 12-inch woofer in a vented enclosure delivers dedicated low-frequency reinforcement.
  • 1,000 watts peak available power from a built-in, fan-cooled amplifier.
  • DSP-based crossover, EQ, compression and limiting manage response and output.
  • Adjustable 90–180 Hz crossover helps integrate the subwoofer with your main speakers.
  • Switchable Bass Enhance adds bass punch for DJ and electronic music playback.

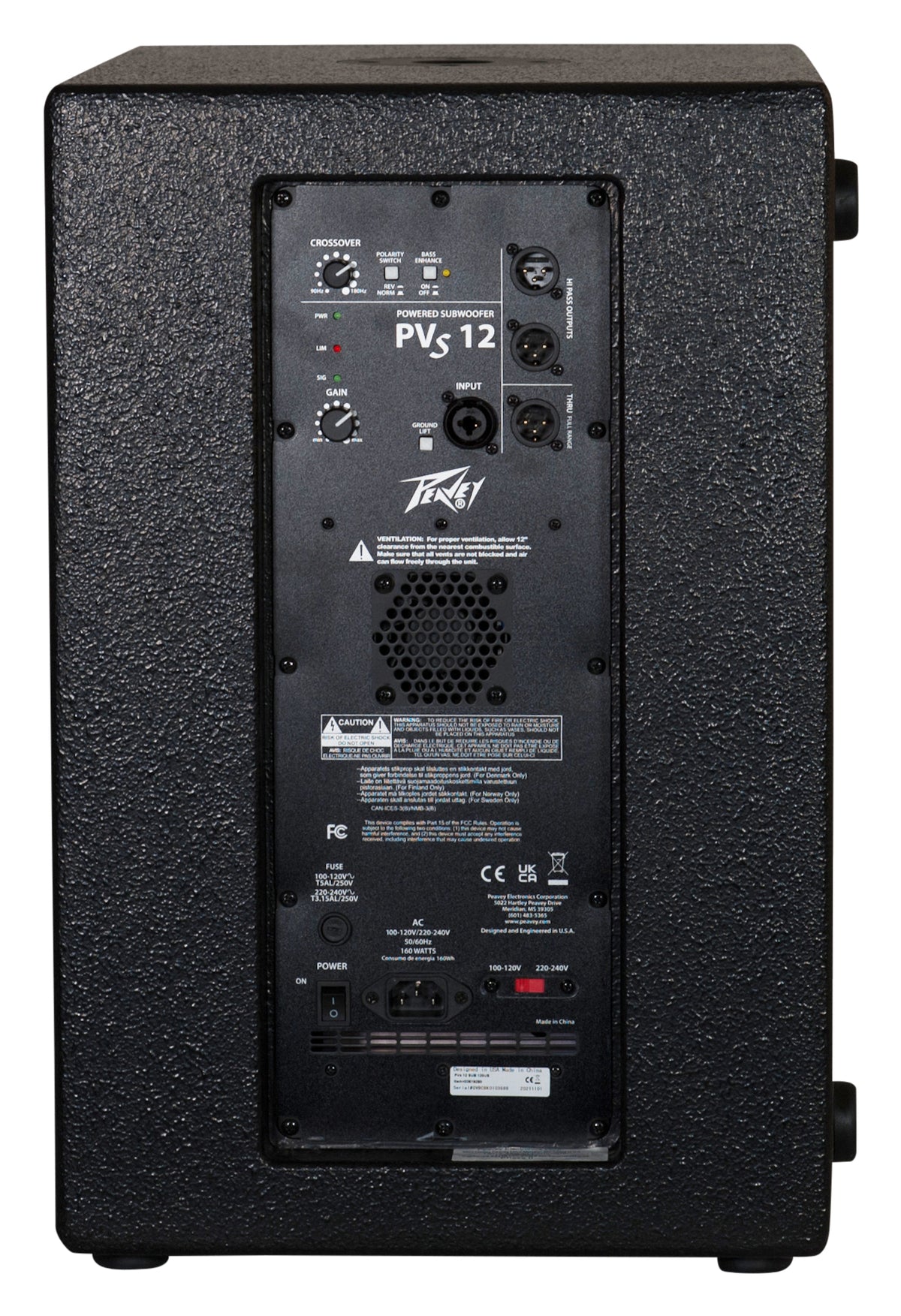

  • Balanced XLR / ¼-inch TRS combo input connects to mixers and other line-level sources.
  • Two high-pass XLR outputs reduce the deep-bass workload on connected powered speakers.
  • Full-range XLR thru output supports additional subwoofers or other line-level devices.
  • Polarity and signal-ground lift switches help fine-tune system integration and reduce ground-loop hum.

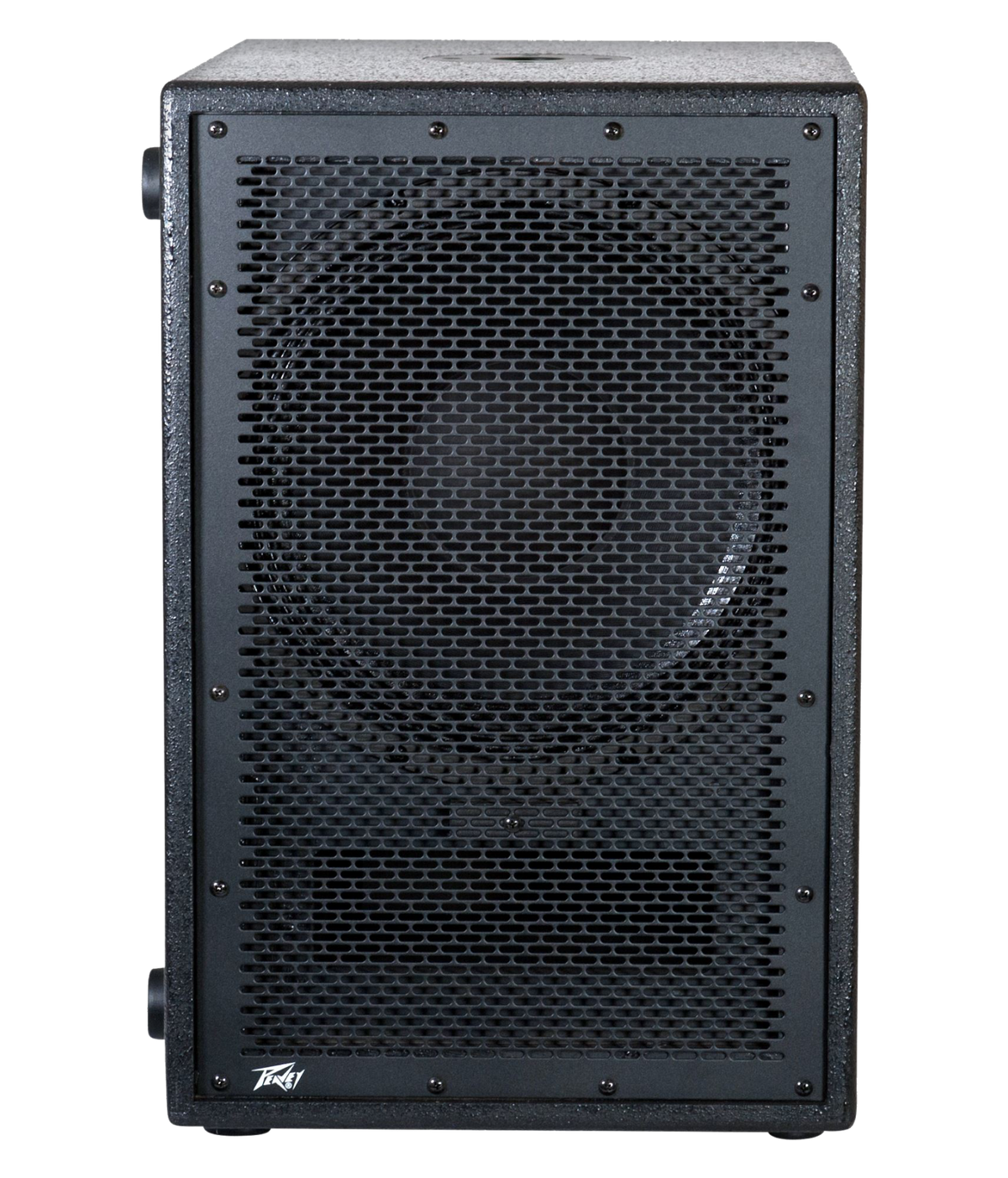

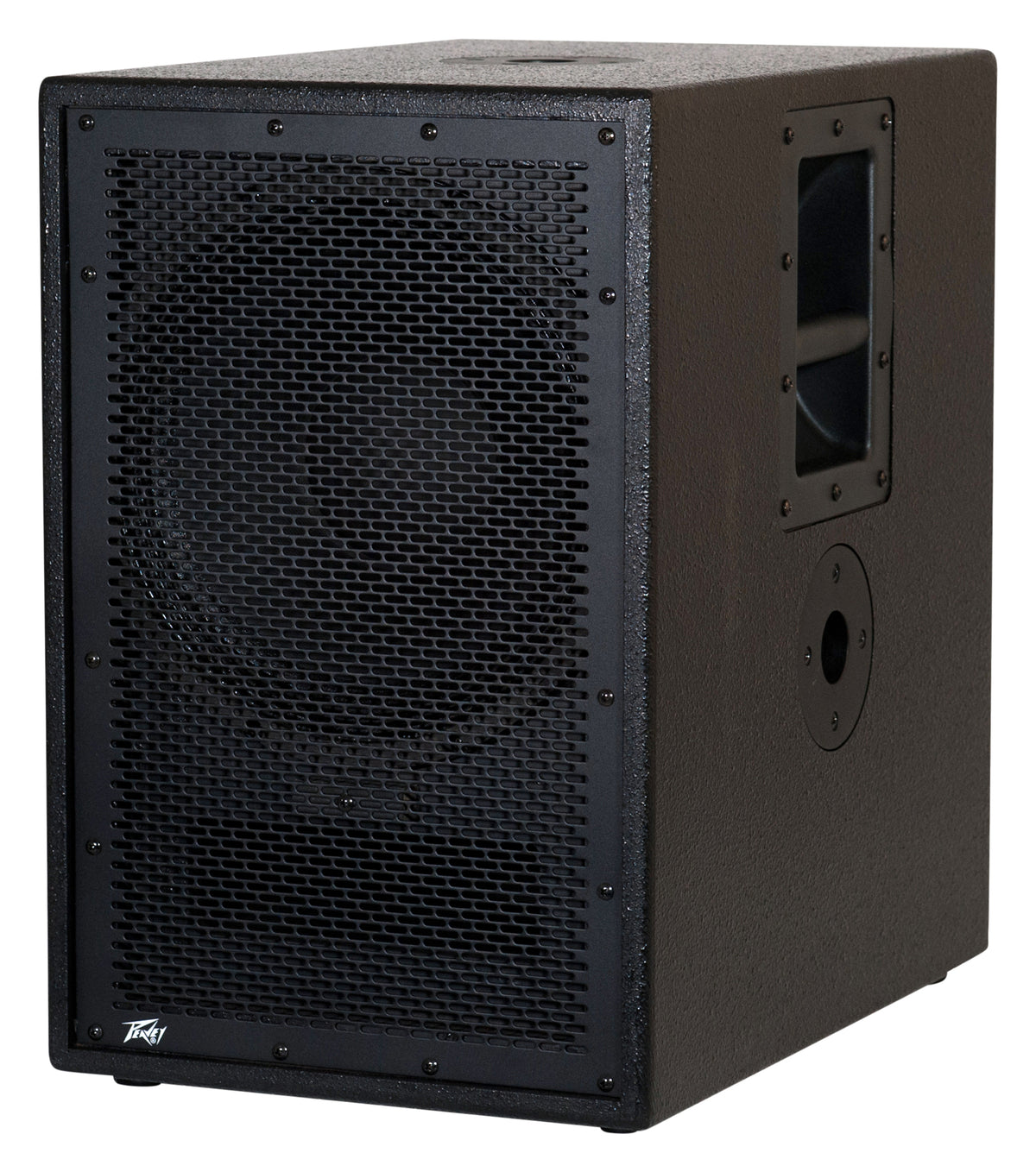

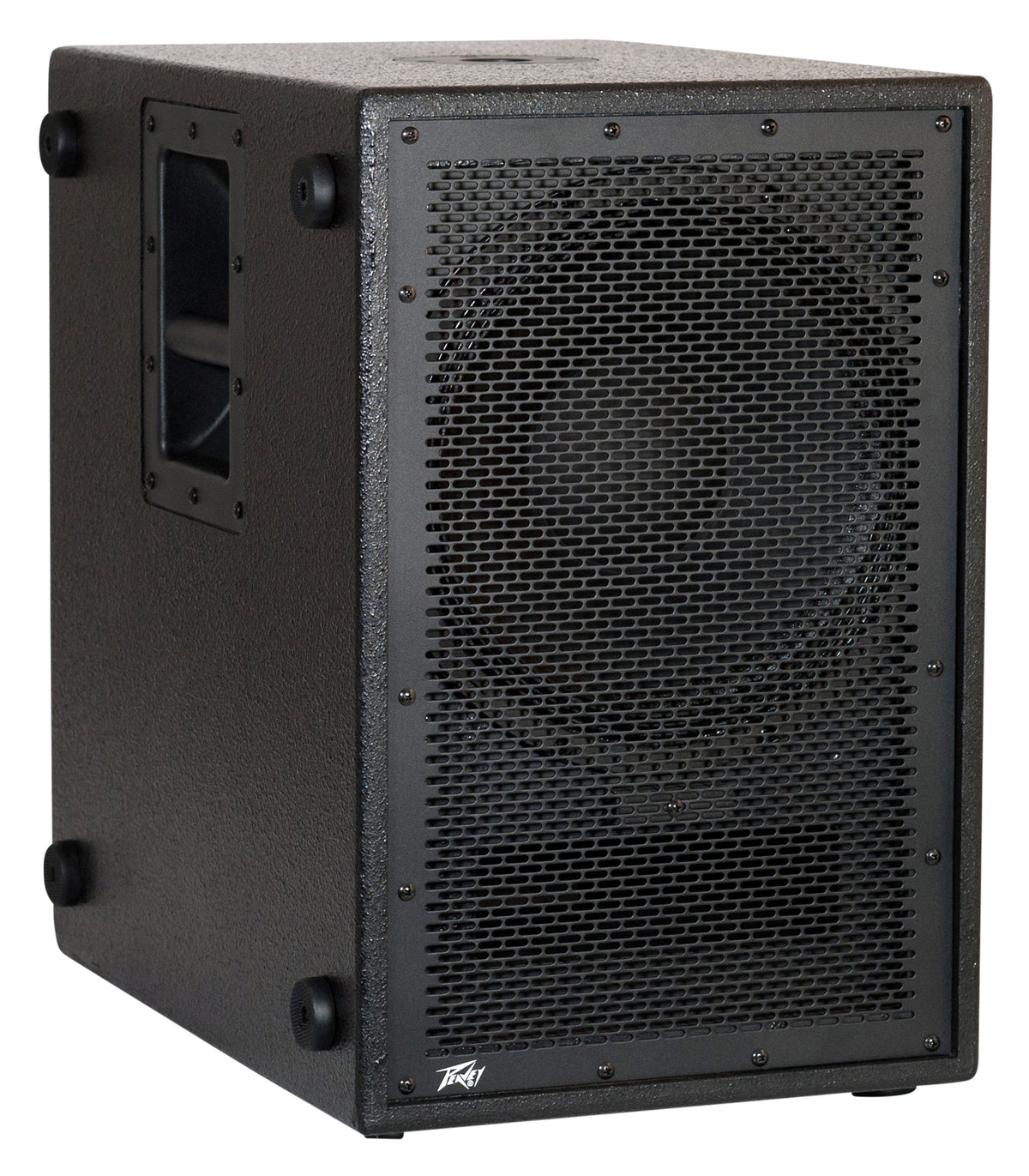

  • Protective perforated steel grille and steel handles support transport and everyday use.
  • Upright or side placement, with two threaded pole mounts and an included speaker pole.
PVs 12 Vented Powered Bass Subwoofer image 0

PVs 12 Vented Powered Bass Subwoofer

$699.99

$699.99

FAQ

Frequency response (-6 dB) 53–180 Hz with crossover control fully clockwise; 53–90 Hz with crossover control fully counterclockwise, measured at 1 meter on-axis in half space.

Low-frequency extension (-10 dB) 48 Hz in half space.

Peak available power 1,000 watts.

Sine-wave power 500 watts into 4 ohms; output duration is limiter controlled.

Maximum continuous SPL 122 dB at 1 meter in half space.

Maximum peak SPL 125 dB at 1 meter in half space.

Woofer 12-inch heavy-duty woofer with a 2.5-inch voice coil and 50 oz. magnet.

Enclosure tuning frequency 50 Hz.

Input connection One female XLR / ¼-inch combo jack supporting balanced or unbalanced operation.

Input impedance 20 kΩ balanced; 10 kΩ unbalanced.

Output connections Two high-pass XLR outputs and one full-range XLR thru output.

Gain adjustment Off to +20 dB.

Crossover frequency Adjustable from 90–180 Hz in 15 discrete steps.

Crossover type Linkwitz-Riley.

Low-pass crossover slope 24 dB/octave.

High-pass output slope 24 dB/octave.

Infrasonic filter slope 36 dB/octave.

Signal processing DSP-based crossover, compression, limiting and EQ.

Bass Enhance Switchable bass-enhancement processing.

Polarity settings Normal (0°) or reversed (180°).

Ground lift Input cable shield ground-lift switch.

Amplifier cooling Forced-air cooling.

Nominal amplifier frequency response 20 Hz–20 kHz, +0/−3 dB.

Hum and noise Greater than 90 dB below rated power.

THD and IM Typically less than 0.1%.

Nominal power consumption 160 watts.

Power requirements 100–120 VAC, 50–60 Hz for domestic operation; 220–240 VAC, 50–60 Hz for export operation.

Enclosure material 15 mm MDF.

Enclosure finish Black acrylic paint.

Grille Full-length, black powder-coated perforated steel.

Handles Two steel handles.

Feet Eight rubber feet for upright or left-side floor placement.

Dimensions (H × W × D) 21.82 × 14.38 × 20.13 inches (554 × 365 × 511 mm), as listed in the manual’s Specifications section.

Net weight 57 lb. (25.9 kg).

Pole mounting Top and right-side threaded pole mounts with an included M20 threaded speaker pole.

Pole-mounted speaker limits Speaker must be less than 29 inches high and less than 44 lb.

Pole length limits 36.88 inches in upright orientation; no longer than 44.75 inches with the subwoofer placed on its left side.

PVs 12 Owner's Manual
