Peavey

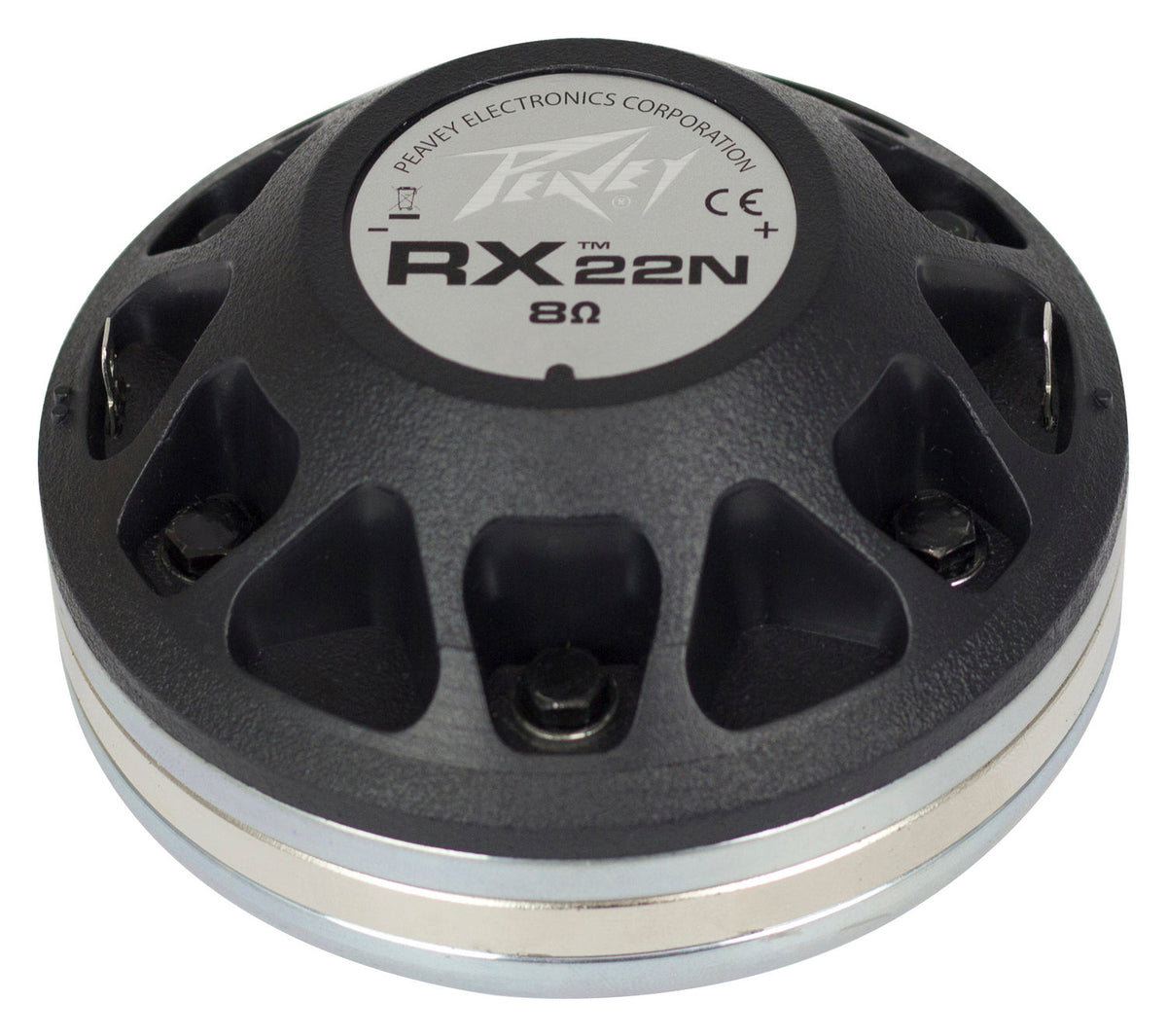

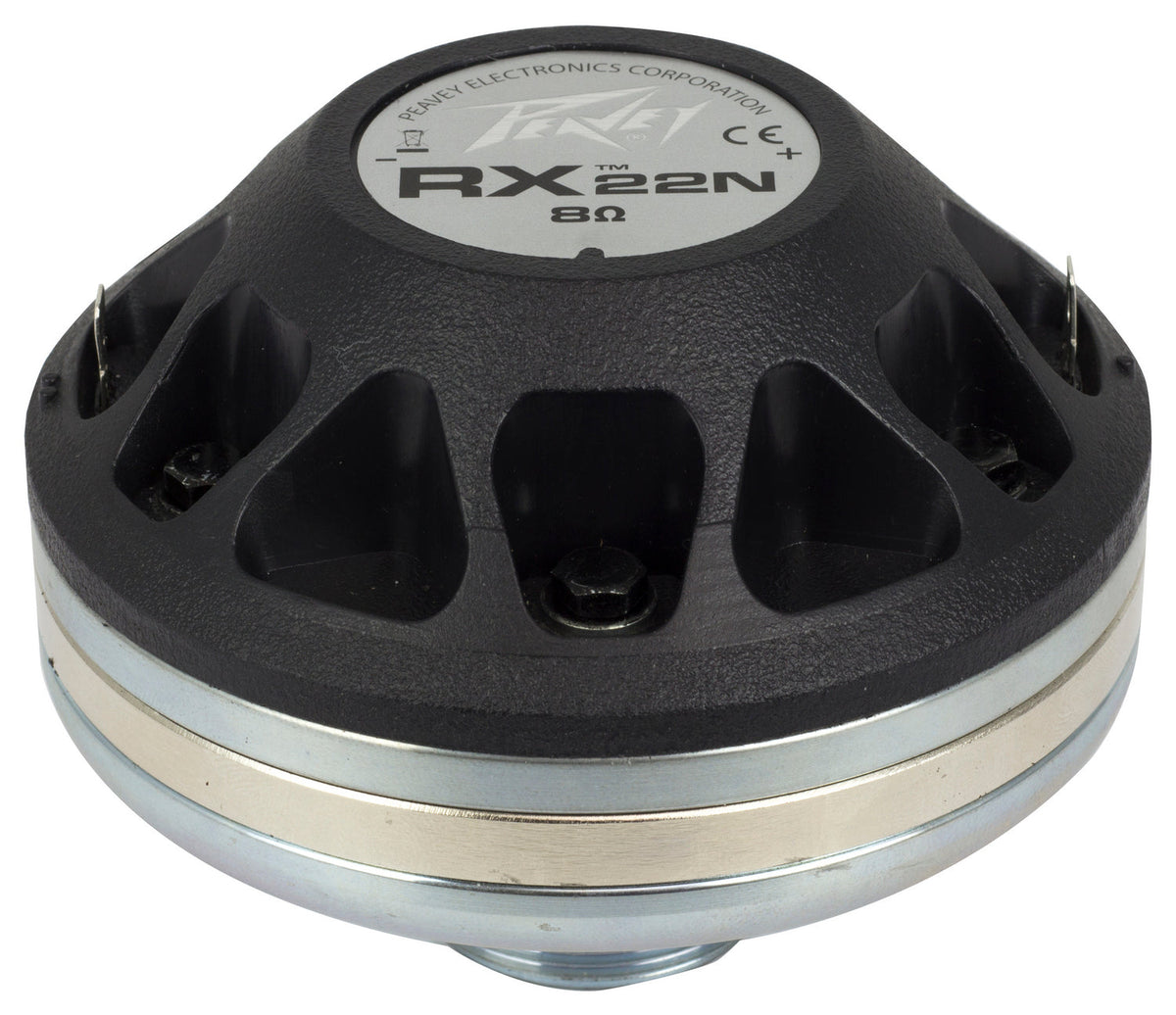

RX™ 22N Neo HF Driver

$219.99

The Peavey RX22N Neo is a high-frequency compression driver featuring a neodymium magnet structure, an integral one-piece titanium diaphragm/suspension assembly, and a 2-inch voice coil. Based on the RX22 design, it delivers the same high-frequency performance and tonal balance in a more compact, lightweight package.

Peavey’s patented radial linear phase plug focuses sound waves within the horn throat to reduce high-frequency cancellations and diffraction. The edge-wound copper-clad aluminum ribbon voice coil uses a high-temperature composite bobbin, while a specially formulated ferrofluid transfers heat from the voice coil to the surrounding magnet structure and dampens resonance modes.

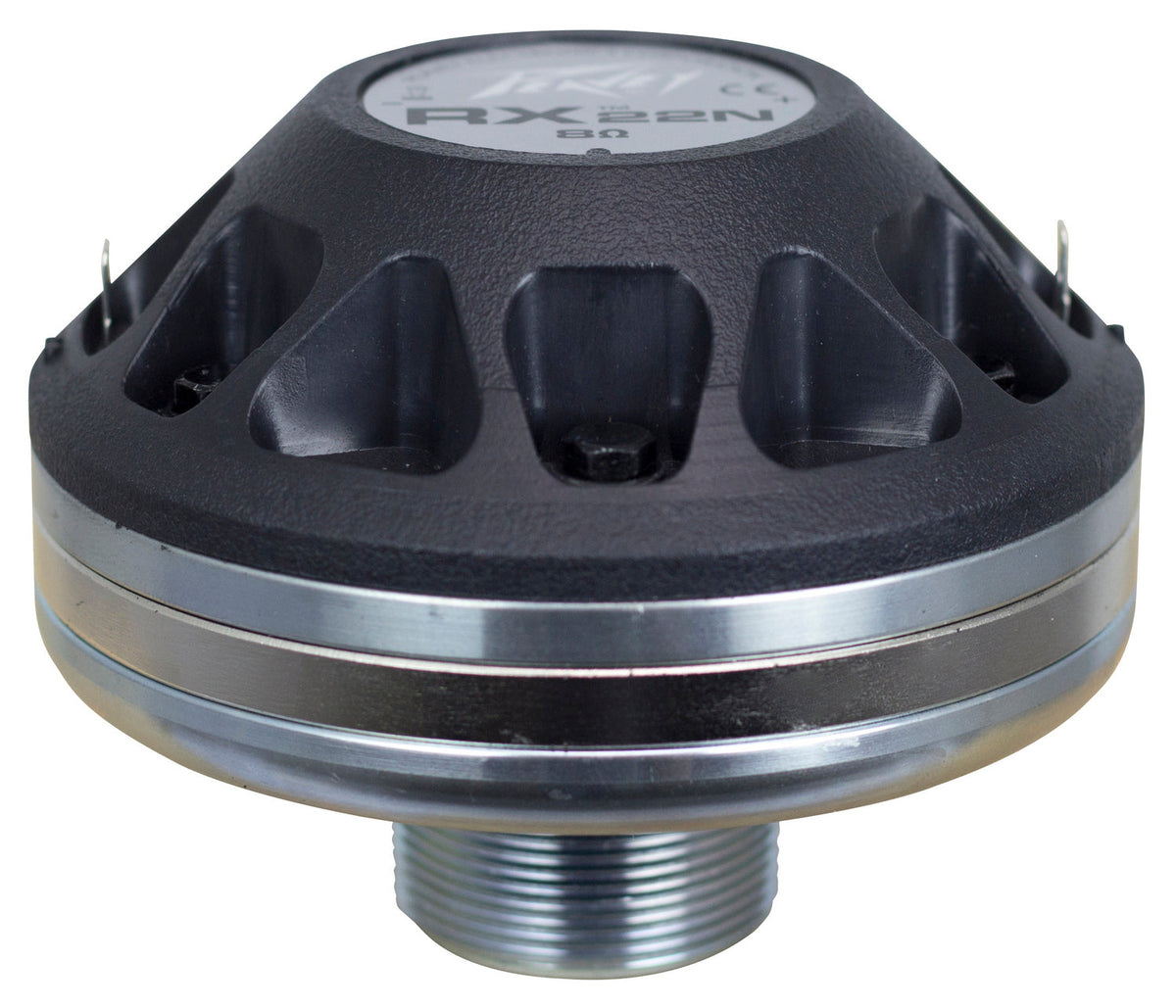

Designed for use with Peavey horns, the RX22N Neo can also be used with horns featuring a standard 1 3/8"-18 threaded coupling.

SKU: 03617290
  • Neodymium magnet design reduces driver weight by as much as 50% while increasing magnetic strength by 15% compared with the original RX22 design.
  • Integral one-piece, commercially pure titanium diaphragm/suspension assembly.
  • 2-inch voice coil with edge-wound copper-clad aluminum ribbon wire and a high-temperature composite bobbin.
  • Patented radial linear phase plug for smoother, more linear frequency response.
  • Specially formulated ferrofluid for heat transfer and resonance damping.
  • Frequency response of 500 Hz to 20,000 Hz.

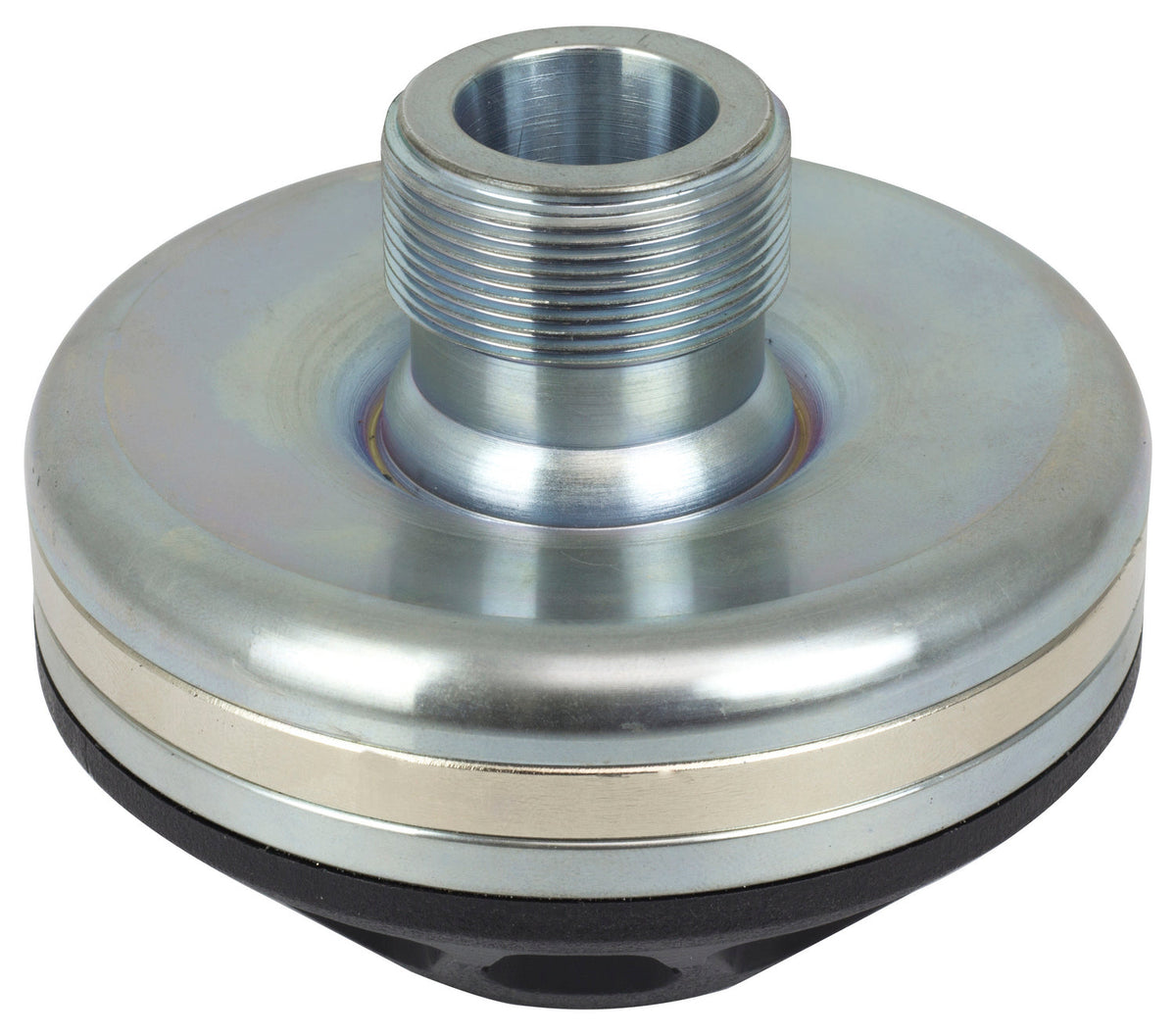

  • Standard 1 3/8"-18 threaded horn coupling.
  • Diaphragm assembly interchangeable with the older RX22. Compatibility with older 22XT and 22T models requires the 0.005-inch shim supplied in the replacement kit.
RX™ 22N Neo HF Driver

RX™ 22N Neo HF Driver

$219.99

$219.99

FAQ

  • Model: RX22N Neo Extended High Frequency Compression Driver

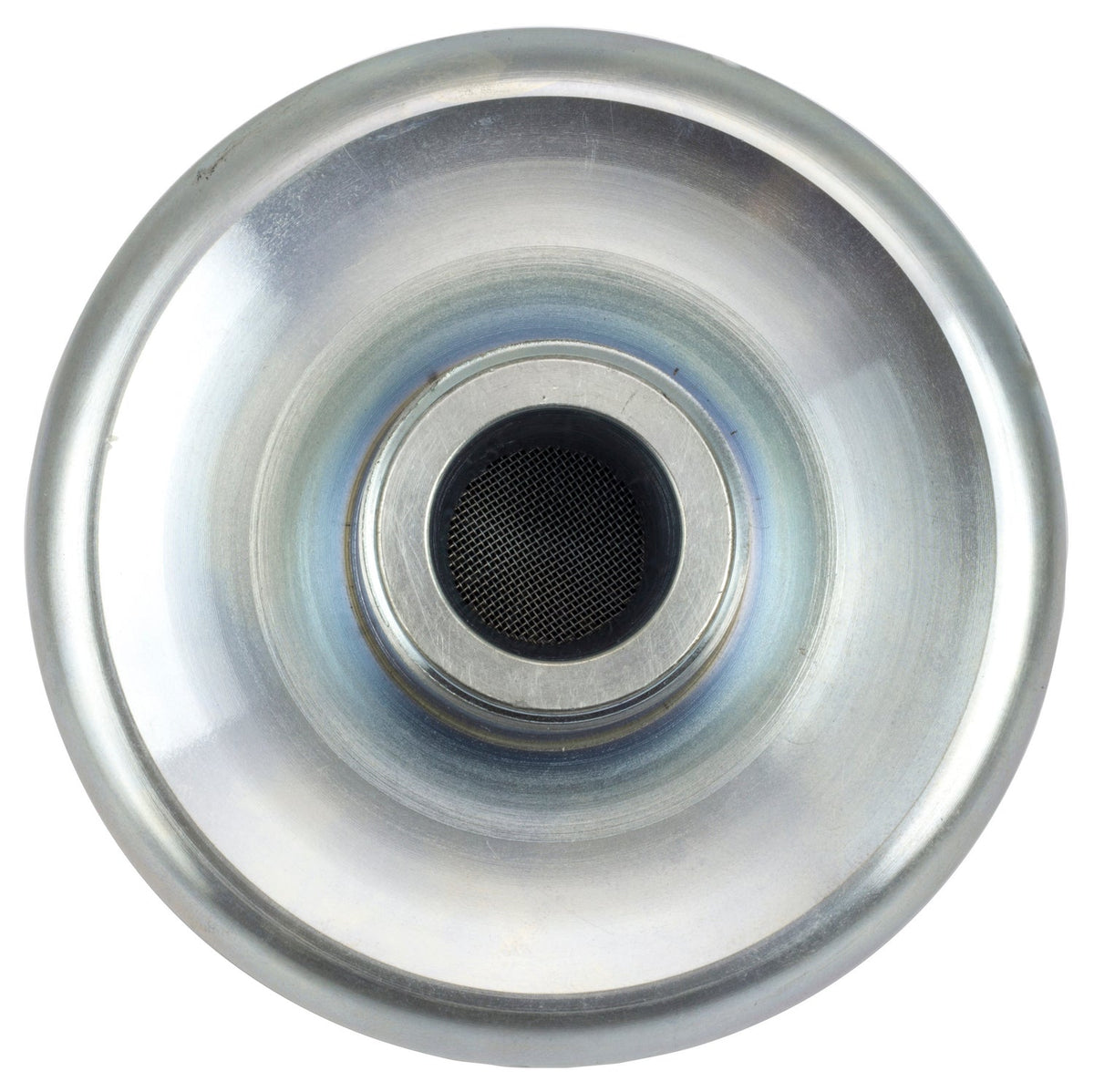

  • Throat: 1" (25 mm)
  • Nominal impedance: 8 ohms
  • Minimum impedance: 5.1 ohms
  • DC resistance: 4.7 ohms
  • Power capacity, 1,000–20,000 Hz: 280 watts peak, 140 watts program, 70 watts continuous using band-limited pink noise (AES 2-1984)
  • Power capacity, 500–20,000 Hz: 240 watts peak, 120 watts program, 60 watts continuous using band-limited pink noise
  • Sensitivity: 111 dB SPL at 1 watt/1 meter, on-axis on a 90° horizontal × 45° vertical horn
  • Nominal efficiency: 30%
  • Frequency response: 500 Hz to 20,000 Hz
  • Recommended crossover: 1,200 Hz at 12 dB/octave
  • Lowest recommended crossover: 500 Hz at 12 dB/octave
  • Diaphragm material: Commercially pure titanium
  • Voice coil diameter: 2.0" (50.8 mm)
  • Voice coil material: Edge-wound copper-clad aluminum ribbon with a high-temperature composite bobbin
  • Flux density: 20,000 gauss (2.0 T)
  • Dimensions: 3.85" (97.8 mm) diameter × 3.01" (76.4 mm) depth
  • Horn coupling diameter: 7/8" (22.2 mm)
  • Horn coupling threads: Standard 1 3/8"-18
  • Net weight: 2.8 lbs.
  • Shipping weight: 3.8 lbs.

RX 22N Driver - Specsheet
