Peavey

SP® 218 2x18 inch Passive Subwoofer

$1,499.99

The Peavey SP® 218 passive subwoofer adds high-output, low-distortion bass to SP Series and other full-range speaker systems. Two 18-inch Pro Rider® woofers in a vented enclosure provide strong bass extension, with power handling rated at 1,200 watts continuous, 2,400 watts program, and 4,800 watts peak. Each driver features an advanced cooling system and a 4-inch voice coil with edge-wound aluminum wire.

Flexible input connections support both single- and dual-amplifier operation. The parallel inputs provide a nominal 4-ohm configuration, while the Neutrik® SpeakOn® switching jack provides independent access to the two 8-ohm woofers without manually rewiring the enclosure.

Built from internally braced hardwood plywood, the SP 218 features a textured black painted finish and a full-length, wrap-around perforated steel grille. Rear tilt-back casters help with transport, and a built-in M20-threaded pole mount plate provides positive support for the included threaded pole. In addition to reinforcing full-range systems, the SP 218 can be used for bass guitar, keyboard, and drum monitoring.

SKU: 03614830
  • Two 18-inch Pro Rider® woofers in a vented enclosure for high-output, low-distortion bass.
  • Power handling of 1,200 watts continuous, 2,400 watts program, and 4,800 watts peak.
  • Frequency response of 51 Hz–210 Hz (±3 dB), with a usable low-frequency limit of 41 Hz at the −10 dB point.
  • Nominal 4-ohm parallel operation or independent 2 × 8-ohm woofer operation through the Neutrik® SpeakOn® switching jack.
  • Two 1/4-inch phone jacks and one four-pin twist-lock jack wired in parallel, plus a Neutrik® SpeakOn® switching jack for independent woofer access.
  • Internally braced hardwood plywood enclosure with textured black paint and a full-length, wrap-around perforated steel grille.
  • Rear tilt-back casters to assist with portability.
  • Built-in M20-threaded pole mount plate with threaded pole included.

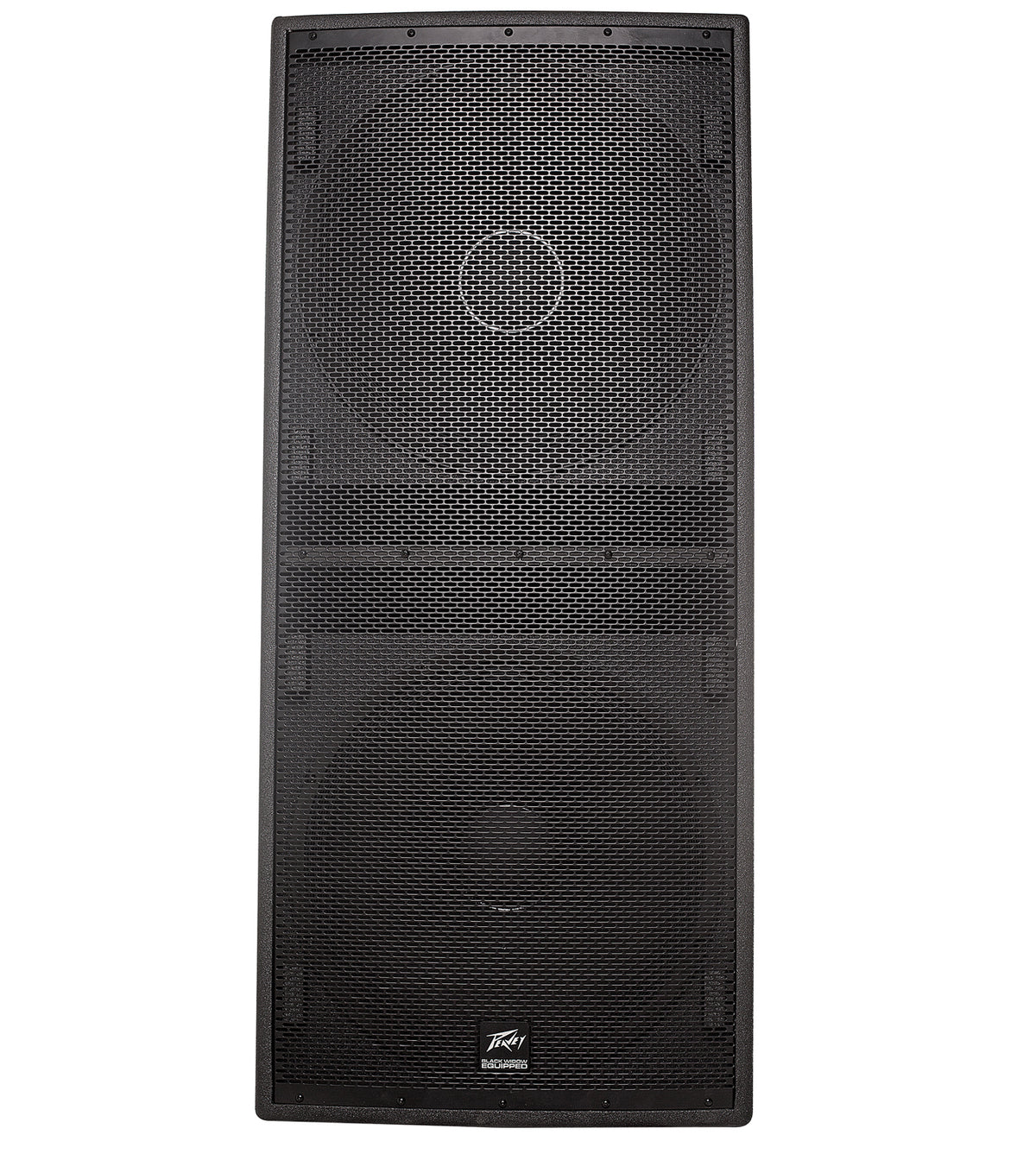

SP® 218 2x18 inch Passive Subwoofer image 0

SP® 218 2x18 inch Passive Subwoofer

$1,499.99

$1,499.99

FAQ

Transducer complement 2 × 18-inch Pro Rider® 1808-8 ALCP woofers in a vented enclosure.

Frequency response 51 Hz–210 Hz (±3 dB), measured at 1 meter on-axis using swept sine in an anechoic environment.

Usable low-frequency limit 41 Hz (−10 dB point).

Box tuning frequency 38 Hz.

Sensitivity 99 dB SPL at 1 watt, 1 meter, in an anechoic environment (2.00 V, parallel input).

Maximum SPL, anechoic at 1 meter 129 dB continuous; 135 dB peak.

Maximum SPL, half-space at 1 meter 135 dB continuous; 141 dB peak.

Radiation angle Essentially omnidirectional, measured at the −6 dB point of polar response.

Continuous power handling 1,200 watts.

Program power handling 2,400 watts.

Peak power handling 4,800 watts.

Parallel-input impedance 4.0 ohms nominal; 3.1 ohms minimum.

Dual-woofer-input impedance 2 × 8.0 ohms nominal; 2 × 6.2 ohms minimum.

Input connections Two 1/4-inch phone jacks, one four-pin twist-lock jack, and one four-pin Neutrik® SpeakOn® switching jack for independent access to each woofer.

Minimum recommended active crossover for bi-amping 100 Hz, 24 dB/octave Linkwitz-Riley low-pass filter.

Recommended infrasonic filter 36 Hz (−6 dB point), 24 dB/octave Linkwitz-Riley high-pass filter.

Enclosure material and finish Plywood with internal bracing, finished in black textured paint.

Grille Full-length black powder-coated metal grille.

Pole mount Built-in M20-threaded pole mount plate; threaded pole included.

Casters Rear tilt-back casters.

Dimensions (H × W × D) 47.28 × 20.38 × 26.81 inches / 1201 × 518 × 681 mm.

Net weight 135 lb / 61.3 kg.

Subwoofer filtering requirement No passive subwoofer crossover is included. Input should be electronically filtered for subwoofer applications. For high-power operation, use a 36 Hz, 24 dB/octave Linkwitz-Riley high-pass filter.
